Rebuilding a table safely • cs9

A task often rebuilds its output table: plan 1 empties the table, and each plan then adds its rows. cs9 keeps every change in a staging table until the last plan succeeds. It then copies the changes into the table in one step. A reader therefore sees the complete old table or the complete new table, never a part of one.

cs9 stages a run only when the run has a run_key. A scheduler can pass one to run_task(). A run without a run_key writes to the table at once, as before.

This vignette runs a small task against SQLite and draws what a reader sees. A chunk calls stopifnot() on each claim, so the vignette fails to build when cs9 stops keeping it.

The task

The table holds counts per week. Before the run it holds 5 old rows, with n = 0. The task rebuilds it with 3 plans, one per week. Plan 1 empties the table, and each plan adds the row of its week.

library(data.table)

db_dir <- file.path(tempdir(), "cs9-rebuilding")
unlink(db_dir, recursive = TRUE)
dir.create(db_dir)
Sys.setenv(
  CS9_AUTO = "0",
  CS9_PATH = db_dir,
  CS9_DBCONFIG_ACCESS = "config/anon",
  CS9_DBCONFIG_DRIVER = "SQLite",
  CS9_DBCONFIG_DB_CONFIG = file.path(db_dir, "config.sqlite"),
  CS9_DBCONFIG_DB_ANON = file.path(db_dir, "anon.sqlite")
)
cs9::reload_db_config()

ss <- cs9::SurveillanceSystem_v9$new(name = "rebuild")
ss$add_table(
  name_access = "anon",
  name_grouping = "rebuild",
  name_variant = "counts",
  field_types = c(week = "INTEGER", n = "INTEGER"),
  keys = "week"
)
counts <- ss$tables$anon_rebuild_counts
counts$insert_data(data.table(week = 1:5, n = 0L))

After it writes, the action records two numbers. One is the rows that a reader sees in the table. The other is the rows that wait in the staging table. staged_tbl() reads the rows that the run staged.

records <- list()
attempt <- "none"
fail_week <- 0L

record <- function(step, published, staged) {
  records[[length(records) + 1L]] <<- data.table(
    attempt = attempt, step = step, published = published, staged = staged
  )
}

rebuild_data <- function(argset, tables) {
  return(list())
}

rebuild_action <- function(data, argset, tables) {
  if (argset$first_analysis) {
    tables$counts$drop_all_rows()
  }
  tables$counts$insert_data(data.table(week = argset$week, n = 10L * argset$week))
  record(
    step = paste("plan", argset$week),
    published = tables$counts$nrow(),
    staged = nrow(dplyr::collect(tables$counts$staged_tbl()))
  )
  if (argset$week == fail_week) {
    stop("week ", argset$week, " failed")
  }
}

ss$add_task(
  name_grouping = "rebuild",
  name_action = "counts",
  for_each_plan = plnr::expand_list(week = 1:3),
  data_selector_fn_name = "rebuild_data",
  action_fn_name = "rebuild_action",
  tables = list(counts = counts)
)

A run that succeeds

attempt <- "A run that succeeds"
record("before", counts$nrow(), 0L)
ss$run_task("rebuild_counts", run_key = "week 40")
record("after", counts$nrow(), 0L)

run_a <- rbindlist(records)
stopifnot(
  "a reader sees the 5 old rows during the run" = all(run_a[step != "after", published] == 5),
  "the staging table grows by one row per plan" = identical(run_a[grepl("plan", step), staged], 1:3),
  "after the run a reader sees the 3 new rows" = run_a[step == "after", published] == 3,
  "the new rows hold the new counts" = identical(dplyr::collect(counts$tbl())$n, c(10L, 20L, 30L))
)

The diagram shows the two numbers at each step. Until the last plan succeeds, a reader sees the old table. cs9 then publishes the staged rows, and a reader sees the new table. This vignette uses SQLite, where the publish is one transaction. On PostgreSQL the publish commits in steps: see the publish on PostgreSQL.

#> Warning: The `label.size` argument of `geom_label()` is deprecated as of ggplot2 3.5.0.
#> ℹ Please use the `linewidth` argument instead.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

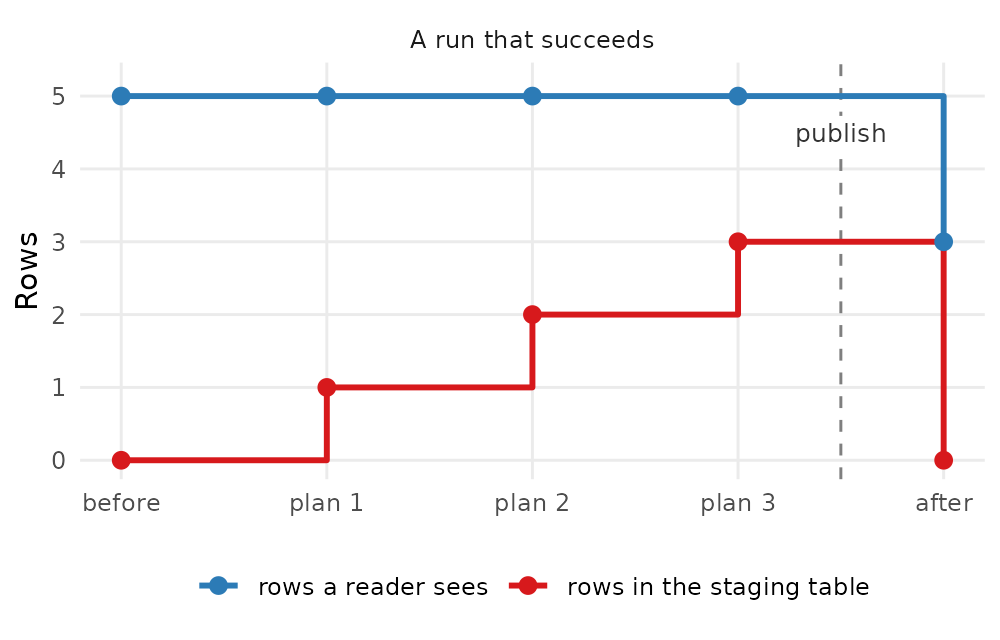

Line chart of one run with 3 plans. The rows that a reader sees stay at the 5 old rows before the run and after plans 1, 2 and 3. They drop to the 3 new rows after the run. The rows in the staging table rise to 1, 2 and 3 after plans 1, 2 and 3. They fall to 0 after the run.

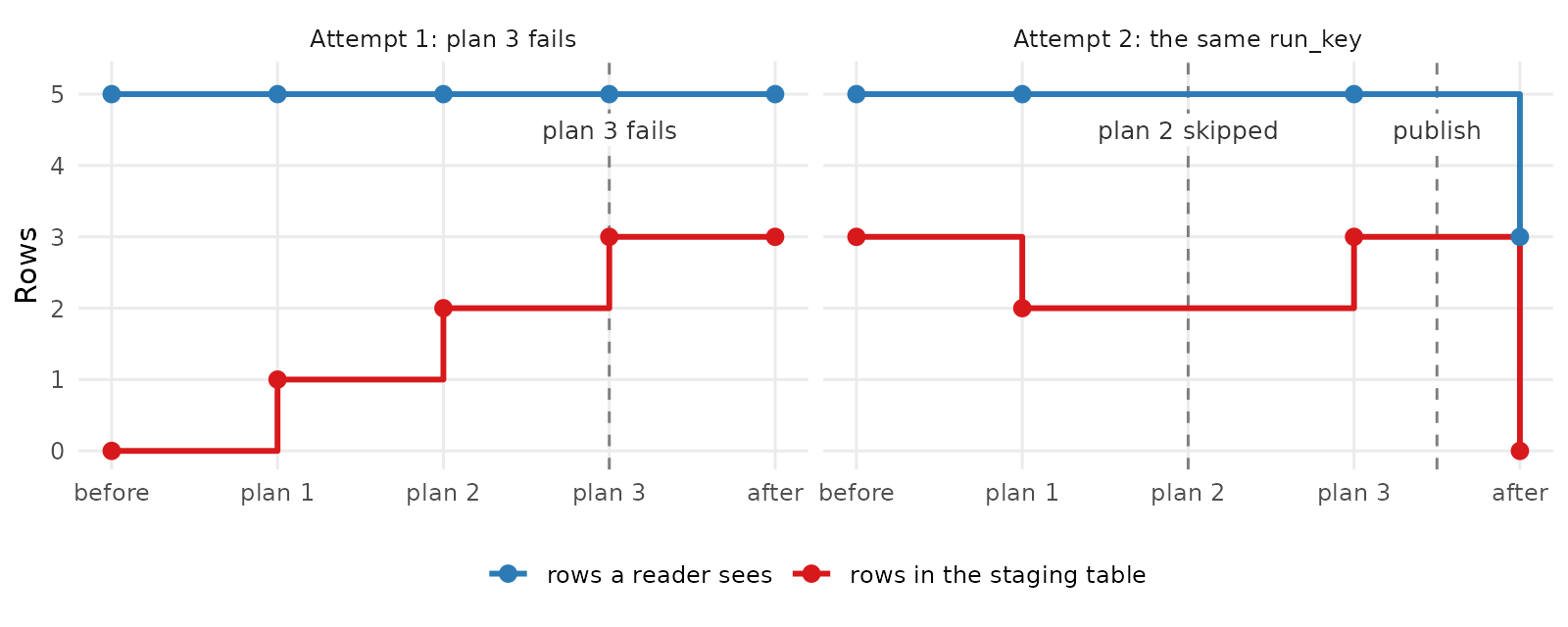

A run that fails, and its retry

Here plan 3 stops with an error. The run publishes nothing, so a reader still sees the 5 old rows.

The retry runs the task again with the same run_key. That attempt resumes the run. Plan 1 runs again, because it can set values that later plans read. The last plan, here plan 3, also runs on every attempt, so a check in it cannot be skipped. Plan 2 finished on the first attempt, so it is skipped. The rows that plan 3 staged on the first attempt are removed first, so each row is published once.

counts$drop_all_rows()
counts$insert_data(data.table(week = 1:5, n = 0L))
records <- list()

attempt <- "Attempt 1: plan 3 fails"
fail_week <- 3L
record("before", counts$nrow(), 0L)
failed <- tryCatch(ss$run_task("rebuild_counts", run_key = "week 41"), error = function(e) e)
# staged_tbl() works only during a run. Between two attempts nothing removes
# the staged rows, so the count after the failure repeats the last count.
record("after", counts$nrow(), tail(rbindlist(records)$staged, 1))

attempt <- "Attempt 2: the same run_key"
fail_week <- 0L
record("before", counts$nrow(), tail(rbindlist(records)$staged, 1))
ss$run_task("rebuild_counts", run_key = "week 41")
record("after", counts$nrow(), 0L)

run_b <- rbindlist(records)
first <- run_b[attempt == "Attempt 1: plan 3 fails"]
second <- run_b[attempt == "Attempt 2: the same run_key"]
stopifnot(
  "attempt 1 stops with the error of plan 3" = grepl("week 3 failed", conditionMessage(failed)),
  "during and after attempt 1 a reader sees the 5 old rows" = all(first$published == 5),
  "attempt 2 keeps the staged row of plan 2" = second[step == "plan 1", staged] == 2,
  "attempt 2 skips plan 2" = !"plan 2" %in% second$step,
  "attempt 2 runs plans 1 and 3" = all(c("plan 1", "plan 3") %in% second$step),
  "after attempt 2 a reader sees the 3 new rows" = second[step == "after", published] == 3,
  "each new row is in the table once" = identical(dplyr::collect(counts$tbl())$week, 1:3)
)

The publish on PostgreSQL

On PostgreSQL cs9 publishes a run in steps, and each step commits on its own:

cs9 records the live tables that the publish changes.
cs9 runs the deletes that the plans recorded, in one transaction per table or partition. drop_all_rows() becomes a TRUNCATE.
cs9 moves the staged rows of each table or partition in batches of at most 200,000 rows. Each batch is one transaction.
cs9 marks the run as published.

Between two steps a reader can see a partly published run. For example, a partition can be empty, or hold only the rows of its first batches.

A publish that stops keeps the steps that it committed. The next attempt with the same run_key builds the plans and stops when the plan list changed. Then it publishes the rest and runs no plan. A run of the same task with a new run_key first publishes the rest of the older run.

On SQLite the publish is one transaction. A reader sees the old table or the new table, and never a part of a run.

What you need to know when you write a task

You do not change your task code. A run with a run_key stages the writes of every table in the task’s tables. A write outside such a run goes to the table at once. These rules apply during a run with a run_key:

Plans depend only on the task’s settings and published tables.
tbl() and nrow() read the published table. staged_tbl() reads the rows that the run staged.
A run MUST write each row once. Two writes of one row stop the run, also when both are upserts.
A plan MUST NOT delete rows that another plan wrote in the same run. Plan 1 MAY delete, because it runs before every other plan.
Plan 1 and the last plan run on every attempt. Any other plan that finished on an earlier attempt is skipped.
After a publish that committed a part, the next attempt runs no plan. It publishes the rest.
Use run_today() in a planner instead of Sys.Date(). On a retry after midnight it still gives the date of the first attempt.
Write to a partitioned table through the table, not through one of its partitions.
SQL that a task sends on the connection of a table goes to the table at once. cs9 does not stage it.

A run with a new run_key removes what a failed run of the same task left in the staging table.

The task runners, such as run_task_detached() and run_task_sequentially_as_callr_bg_using_load_all(), also take a run_key. Pass run_key to stage the run, as a scheduler does.

Staging works on PostgreSQL and SQLite, when all tables of the task are in one database. Otherwise a run with a run_key stops with an error before it writes. A table of the config access is never staged.

On PostgreSQL, two runs of one task with a run_key cannot overlap. The second run stops with an error while the first run is alive.
